Aluminum electrolytic capacitor with 10mF capacitance and 63V voltage rating. Features 35mR ESR, 5.26A ripple current, and 5000-hour life at 85°C. Radial package measures 35mm diameter by 50mm height with 10mm lead pitch and snap-in termination. Operating temperature range is -40°C to 85°C.
PackageRadial
Voltage63V
Capacitance10mF
Voltage Rating63V
Quick Jump:
Technical Specifications
Vishay MAL205658103E3 technical specifications.
General
| Capacitance | 10mF |
| Package/Case | Radial |
| Diameter | 35mm |
| ESR (Equivalent Series Resistance) | 35mR |
| Height | 50mm |
| Height - Seated (Max) | 2.047inch |
| Impedance | 30mR |
| Lead Pitch | 10mm |
| Leakage Current | 3.784mA |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 50 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 5.26A |
| RoHS Compliant | Yes |
| Series | 056 PSM-SI |
| Termination | Snap in |
| Tolerance | 20% |
| Voltage | 63V |
| Voltage Rating | 63V |
Compliance
| RoHS | Compliant |
Datasheet
Vishay MAL205658103E3 Datasheet
Download the complete datasheet for Vishay MAL205658103E3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

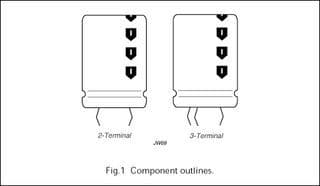

Product Images
