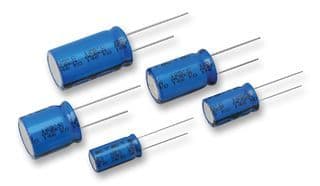

The MAL214636471E3 is a 470uF aluminum electrolytic capacitor with a 25V voltage rating. It features a radial package with a 10mm diameter and a 16mm height. The capacitor has a 75mR impedance and a 1.1A ripple current. It operates within a temperature range of -55°C to 125°C and is compliant with RoHS regulations. The component is packaged in tape and reel with 800 units per package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay MAL214636471E3 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Capacitance | 470uF |
| Package/Case | Radial |
| Diameter | 10mm |
| Dielectric Material | Aluminium |
| Height | 16mm |
| Height - Seated (Max) | 0.689inch |
| Impedance | 75mR |
| Lead Pitch | 0.197inch |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 800 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 1.1A |
| RoHS Compliant | Yes |
| Series | 146 RTI |
| Tolerance | 20% |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
| RoHS | Compliant |
