Vishay
MBA02040C2004FRP00

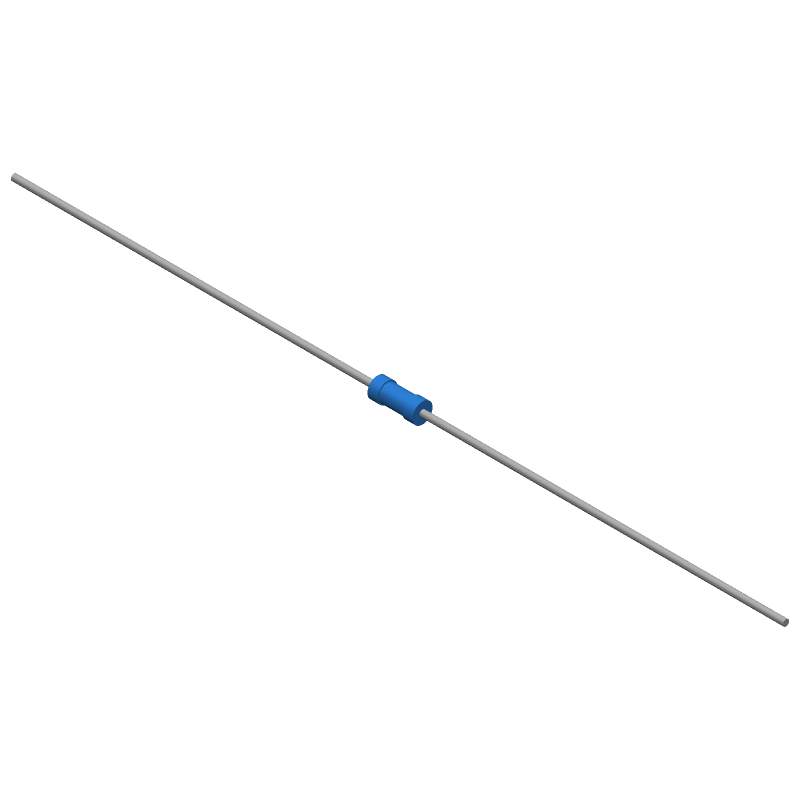

Fixed Resistor, Metal Alloy, 0.4W, 2000000ohm, 200V, 1% +/-Tol, 50ppm/Cel, Through Hole Mount, AXIAL LEADED, LEAD FREE
Fixed Resistor, Metal Alloy, 0.4W, 2000000ohm, 200V, 1% +/-Tol, 50ppm/Cel, Through Hole Mount, AXIAL LEADED, LEAD FREE
PackageAxial
Resistance2MR
Voltage Rating200V
Quick Jump:
Technical Specifications
Vishay MBA02040C2004FRP00 technical specifications.
General
| Package/Case | Axial |
| Contact Plating | Tin |
| Diameter | 1.6mm |
| Features | Automotive AEC-Q200 |
| Lead Free | Lead Free |
| Length | 0.142inch |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 400mW |
| Number of Terminations | 2 |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Resistance | 2MR |
| Resistance Tolerance | 1% |
| Resistor Type | Metal Film |
| RoHS Compliant | Yes |
| Series | 5063JD Spacemiser |
| Tolerance | 1% |
| Voltage Rating | 200V |
| DC Rated Voltage | 200V |
Compliance
| RoHS | Compliant |
Datasheet
Vishay MBA02040C2004FRP00 Datasheet
Download the complete datasheet for Vishay MBA02040C2004FRP00 to view detailed technical specifications.
No datasheet is available for this part.
