General purpose rectifier diode featuring a 100V repetitive reverse voltage (Vrrm) and 200mA forward current. This silicon diode offers a 150mA average rectified current and a fast 8ns reverse recovery time. Designed for surface mount applications, it is housed in a micromelf-2 glass package with dimensions of 2mm length, 1.2mm width, and 1.2mm height. Operating across a wide temperature range from -65°C to 175°C, this component is halogen-free, RoHS compliant, and AEC-Q101 qualified.
PackageSMD/SMT
Capacitance4pF
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay MCL4148-TR3 technical specifications.
General
| Average Rectified Current | 150mA |
| Capacitance | 4pF |
| Package/Case | SMD/SMT |
| Forward Current | 200mA |
| Height | 1.2mm |
| Lead Free | Lead Free |
| Length | 2mm |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 100V |
| Max Reverse Current | 5uA |
| Max Reverse Leakage Current | 5uA |
| Max Reverse Voltage (DC) | 75V |
| Max Surge Current | 2A |
| Mount | Surface Mount |
| Package Quantity | 10000 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 2A |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Reverse Recovery Time | 8ns |
| Reverse Voltage | 75V |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q101 |
| Width | 1.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay MCL4148-TR3 Datasheet
Download the complete datasheet for Vishay MCL4148-TR3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

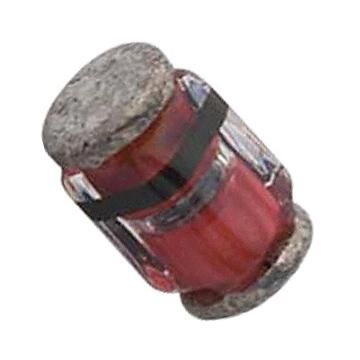

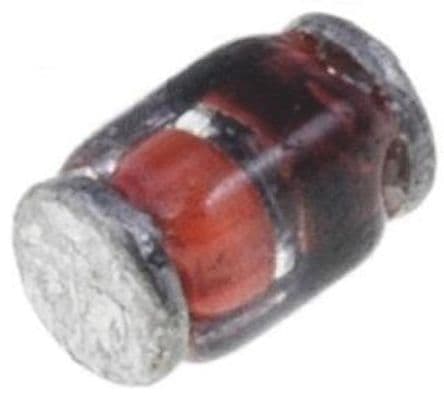

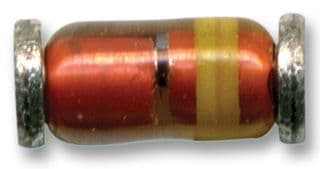

Product Images
