Vishay
MCT06030C2150FP500

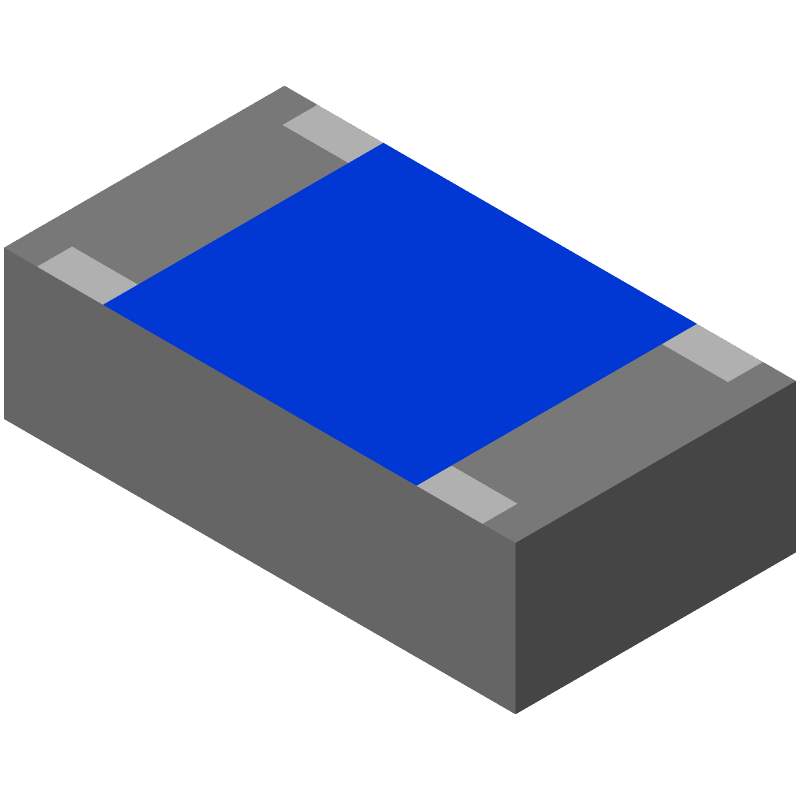

RESISTOR, THIN FILM, 0.1 W, 1 %, 50 ppm, 215 ohm, SURFACE MOUNT, 0603, CHIP, ROHS COMPLIANT
Package0603
Resistance215R
Voltage Rating75V
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay MCT06030C2150FP500 technical specifications.
General
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Contact Plating | Tin |
| Features | Anti-Sulfur |
| Lead Free | Lead Free |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 125mW |
| Mount | Surface Mount |
| Number of Terminations | 2 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Resistance | 215R |
| Resistance Tolerance | 1% |
| Resistor Type | Thin Film |
| RoHS Compliant | Yes |
| Series | MCT - Professional |
| Tolerance | 1% |
| Voltage Rating | 75V |
| DC Rated Voltage | 75V |
| Width | 850um |
Compliance
| RoHS | Compliant |
Datasheet
Vishay MCT06030C2150FP500 Datasheet
Download the complete datasheet for Vishay MCT06030C2150FP500 to view detailed technical specifications.
No datasheet is available for this part.
