Surface mount zero ohm jumper resistor, 0603 chip size, featuring thin film technology. Rated for 0.1W power dissipation and 75V DC voltage. Operating temperature range from -55°C to +155°C. Tin contact plating and anti-sulfur protection enhance durability. RoHS compliant and lead-free construction.
Package0603
Resistance0R
Voltage Rating75V
Quick Jump:
Technical Specifications
Vishay MCT06030Z0000ZP500 technical specifications.
General
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Contact Plating
Tin
Features
Anti-Sulfur
Height
0.022inch
Lead Free
Lead Free
Length
0.061inch
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Max Power Dissipation
125mW
Number of Terminations
2
Package Quantity
1
Packaging
Cut Tape
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
0R
Resistor Type
Thin Film
RoHS Compliant
Yes
Series
MCT 0603 - Professional
Size Code
0603
Voltage Rating
75V
DC Rated Voltage
75V
Width
0.033inch
Compliance
RoHS
Compliant
Datasheet
Vishay MCT06030Z0000ZP500 Datasheet
Download the complete datasheet for Vishay MCT06030Z0000ZP500 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

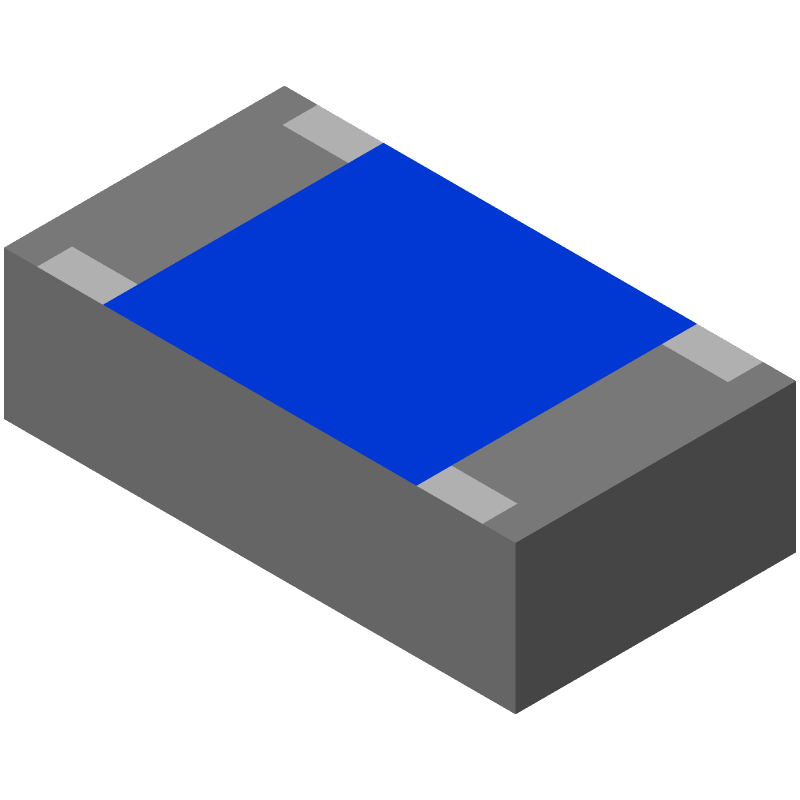

Product Images
