VISHAY

MKP1848S63050JY5C

Datasheet

30uF 500V PP Film Capacitor, Radial, Through Hole, 10mR ESR

Vishay

MKP1848S63050JY5C

Name: MKP1848S63050JY5C Vishay
Brand: Vishay
SKU: MKP1848S63050JY5C

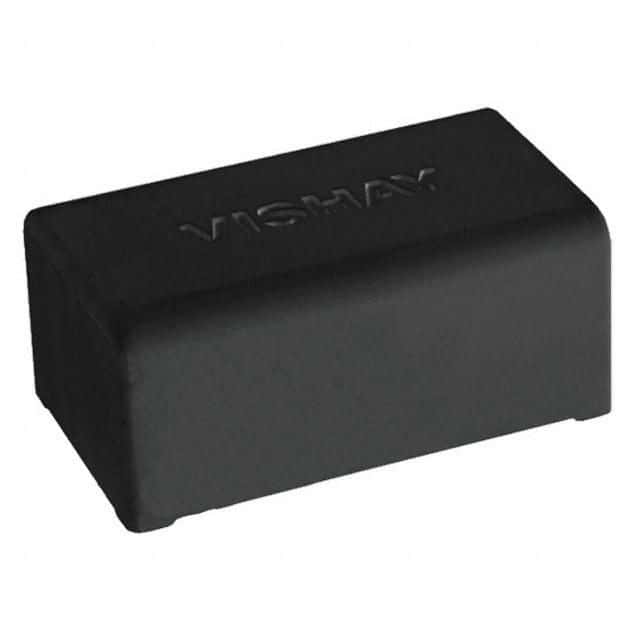

30uF 500V PP Film Capacitor, Radial, Through Hole, 10mR ESR

Metallized polypropylene film capacitor with 30µF capacitance and 5% tolerance, rated for 500V DC. Features low ESR of 10mΩ, operating temperature range of -40°C to 105°C, and through-hole mounting with radial leads. Dimensions include a 35mm depth, 18mm height, 57.5mm length, and 45mm width, with a 52.5mm lead pitch and 1.2mm lead diameter. This RoHS compliant component is designed for general applications.

PackageRadial

Voltage500V

Capacitance30uF

Voltage Rating500V

Quick Jump:

Technical Specifications

Vishay MKP1848S63050JY5C technical specifications.

General

Capacitance	30uF
Package/Case	Radial
Depth	35mm
Dielectric	PP
Dielectric Material	PP
ESR (Equivalent Series Resistance)	10mR
Height	18mm
Height - Seated (Max)	0.709inch
Lead Diameter	1.2mm
Lead Free	Lead Free
Lead Pitch	52.5mm
Length	57.5mm
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Mount	Through Hole, PCB
Package Quantity	40
Packaging	Bulk
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Series	MKP1848S DC-Link
Termination	PC Pins
Tolerance	5%
Voltage	500V
Voltage Rating	500V
DC Rated Voltage	500V
Width	45mm
