General purpose film capacitor with 30µF capacitance and 700V DC rating. Features a polypropylene (PP) dielectric, 5% tolerance, and 8mΩ ESR. Designed for through-hole PCB mounting with a 52.5mm lead pitch and 1.2mm lead diameter. Operates from -40°C to 105°C with a rated life of 100,000 hours. Dimensions are 57.5mm (length) x 39mm (width/depth) x 24mm (height).
PackageRadial
Voltage700V
Capacitance30uF
Voltage Rating700V
Quick Jump:
Technical Specifications
Vishay MKP1848S63070JY5F technical specifications.
General
Capacitance
30uF
Package/Case
Radial
Depth
39mm
Dielectric
PP
Dielectric Material
PP
ESR (Equivalent Series Resistance)
8mR
Height
24mm
Height - Seated (Max)
0.945inch
Lead Diameter
1.2mm
Lead Free
Lead Free
Lead Pitch
52.5mm
Length
57.5mm
Life (Hours)
100000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Through Hole, PCB
Package Quantity
35
Packaging
Bulk
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
MKP1848S DC-Link
Termination
PC Pins
Tolerance
5%
Voltage
700V
Voltage Rating
700V
DC Rated Voltage
700V
Weight
1.393321oz
Width
39mm
Compliance
RoHS
Compliant
Datasheet
Vishay MKP1848S63070JY5F Datasheet
Download the complete datasheet for Vishay MKP1848S63070JY5F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

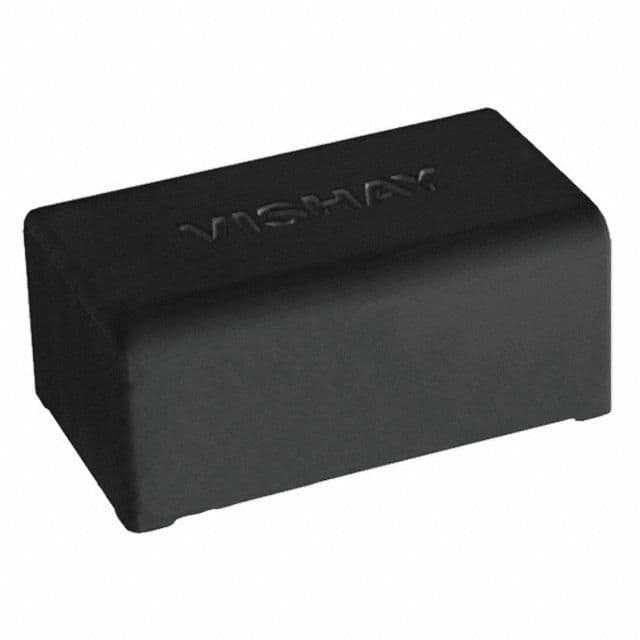

Product Images
