Surface mount thin film chip resistor with 1kΩ resistance and 1% tolerance. Features 0.4W power rating, 50ppm temperature coefficient, and 200V voltage rating. Constructed with metal film technology in a cylindrical Mini-MELF package (0207) measuring 5.8mm x 2.2mm, offering a wide operating temperature range of -55°C to 155°C. Includes automotive AEC-Q200 qualification and anti-sulfur protection.
Package0207
Resistance1kR
Voltage Rating200V
Quick Jump:
Technical Specifications
Vishay MMB02070C1001FB200 technical specifications.
General
| Package/Case | 0207 |
| Construction | Cylindrical |
| Contact Plating | Tin |
| Diameter | 2.2mm |
| Features | Automotive AEC-Q200, Anti-Sulfur |
| Height | 2.2mm |
| Lead Free | Lead Free |
| Length | 5.8mm |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1W |
| Military Standard | Not |
| Number of Terminations | 2 |
| Operating Supply Voltage | 300V |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Resistance | 1kR |
| Resistance Tolerance | 1% |
| Resistor Type | Metal Film, Mini-Melf-resistor |
| RoHS Compliant | Yes |
| Series | MMB - Professional |
| Technology | THIN FILM |
| Tolerance | 1% |
| Voltage Rating | 200V |
Compliance
| RoHS | Compliant |
Datasheet
Vishay MMB02070C1001FB200 Datasheet
Download the complete datasheet for Vishay MMB02070C1001FB200 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

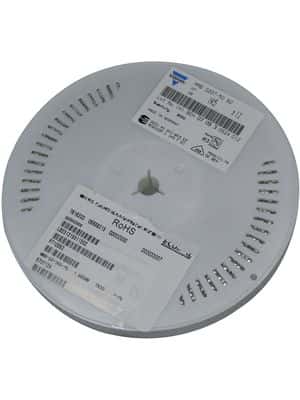

Product Images
