Thin film chip resistor, 3.6 kΩ resistance with 1% tolerance. Features 0.2 W power rating, 50 ppm temperature coefficient, and a 350V voltage rating. Constructed with a cylindrical MELF package (0102 case) measuring 2.2mm in length and 1.1mm in diameter, it offers 2 terminations with tin plating. Designed for automotive applications with AEC-Q200 qualification, operating from -55°C to 155°C, and is RoHS compliant.
Package0102
Resistance3.6kR
Voltage Rating350V
Quick Jump:
Technical Specifications
Vishay MMU01020C3601FB300 technical specifications.
General
| Package/Case | 0102 |
| Construction | Cylindrical |
| Contact Plating | Tin |
| Diameter | 1.1mm |
| Features | Automotive AEC-Q200, Anti-Sulfur |
| Lead Free | Lead Free |
| Length | 2.2mm |
| Max Operating Temperature | 155°C |
| Max Power Dissipation | 300mW |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Number of Terminations | 2 |
| Operating Supply Voltage | 150V |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Resistance | 3.6kR |
| Resistance Tolerance | 1% |
| Resistor Type | Metal Film |
| RoHS Compliant | Yes |
| Series | MMU - Professional |
| Technology | THIN FILM |
| Tolerance | 1% |
| Voltage Rating | 350V |
Compliance
| RoHS | Compliant |
Datasheet
Vishay MMU01020C3601FB300 Datasheet
Download the complete datasheet for Vishay MMU01020C3601FB300 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

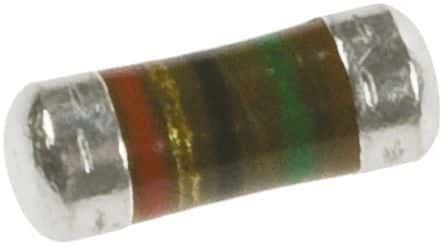

Product Images
