NTC thermistor for temperature-dependent resistance applications. Features 10kΩ resistance with a 2% tolerance and 0.5% accuracy. Designed for chassis mounting with free-hanging or screw termination. Operates within a -40°C to 125°C temperature range, with a maximum power dissipation of 100mW. This lead-free component is RoHS compliant and supplied in bulk packaging.
Resistance10kR
MountingFree Hanging, Screw
Quick Jump:
Technical Specifications
Vishay NTCALUG03A103G technical specifications.
General
| Accuracy | 0.5% |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 100mW |
| Mount | Free Hanging, Screw |
| Package Quantity | 2000 |
| Packaging | Bulk |
| Resistance | 10kR |
| Resistance Tolerance | 2% |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q200, NTCA |
| Termination | Wire |
| Tolerance | 2% |
Compliance
| RoHS | Compliant |
Datasheet
Vishay NTCALUG03A103G Datasheet
Download the complete datasheet for Vishay NTCALUG03A103G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

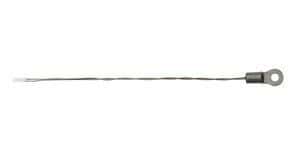

Product Images
