NTC Thermistor, 10kR resistance with 5% tolerance, designed for through-hole mounting. Features a radial package with a 2.54mm lead pitch, 0.6mm lead diameter, and 17mm lead length. Operates across a temperature range of -40°C to 125°C, with a maximum power dissipation of 500mW. Accuracy is specified at 0.75%.
PackageRadial
Resistance10kR
MountingThrough Hole
Quick Jump:
Technical Specifications
Vishay NTCLE100E3103JB0 technical specifications.
General
| Accuracy | 0.75% |
| Package/Case | Radial |
| Depth | 3mm |
| Height | 9mm |
| Lead Diameter | 0.6mm |
| Lead Length | 17mm |
| Lead Pitch | 2.54mm |
| Length | 3.3mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 500mW |
| Mount | Through Hole |
| Package Quantity | 500 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Resistance | 10kR |
| Resistance Tolerance | 5% |
| RoHS Compliant | Yes |
| Series | 2322 |
| Termination | Radial |
| Tolerance | 5% |
Compliance
| RoHS | Compliant |
Datasheet
Vishay NTCLE100E3103JB0 Datasheet
Download the complete datasheet for Vishay NTCLE100E3103JB0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

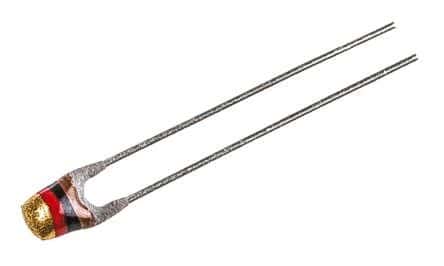

Product Images
