NTC thermistor, 10000 ohm resistance, 5% tolerance, and 0.75% accuracy. Features radial leads for through-hole mounting, with a 3mm depth and 3.3mm length. Operates within a -40°C to 125°C temperature range, with a maximum power dissipation of 500mW. This component is lead-free, RoHS compliant, and supplied on tape and reel.
PackageRadial
MountingThrough Hole
Quick Jump:
Technical Specifications
Vishay NTCLE100E3103JT1 technical specifications.
General
| Accuracy | 0.75% |
| Package/Case | Radial |
| Depth | 3mm |
| Lead Free | Lead Free |
| Length | 3.3mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 500mW |
| Mount | Through Hole |
| Packaging | Tape and Reel |
| Resistance Tolerance | 5% |
| RoHS Compliant | Yes |
| Tolerance | 5% |
Compliance
| RoHS | Compliant |
Datasheet
Vishay NTCLE100E3103JT1 Datasheet
Download the complete datasheet for Vishay NTCLE100E3103JT1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

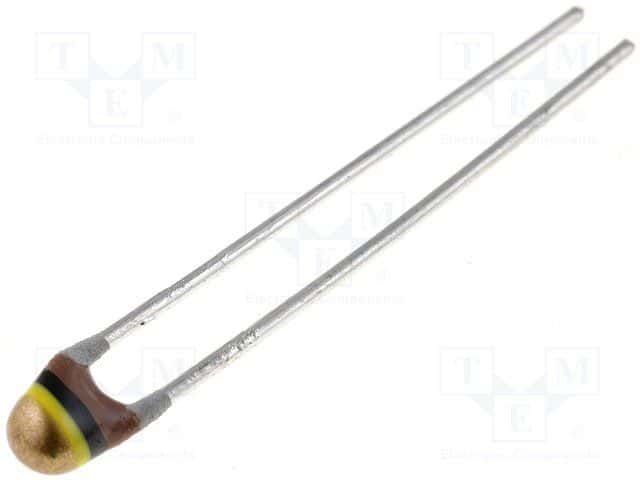

Product Images
