Vishay
NTCLE100E3334JB0
RESISTOR, TEMPERATURE DEPENDENT, NTC, 330000 ohm, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT
PackageRadial
Resistance330kR
MountingThrough Hole
Quick Jump:
Technical Specifications
Vishay NTCLE100E3334JB0 technical specifications.
General
Accuracy
1.5%
Package/Case
Radial
Depth
3mm
Lead Diameter
0.6mm
Lead Length
17mm
Lead Pitch
2.54mm
Length
3.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
500mW
Mount
Through Hole
Package Quantity
500
Packaging
Bulk
Reach SVHC Compliant
Unknown
Resistance
330kR
Resistance Tolerance
5%
RoHS Compliant
Yes
Termination
Radial
Tolerance
5%
Width
3.5mm
Compliance
RoHS
Compliant
Datasheet
Vishay NTCLE100E3334JB0 Datasheet
Download the complete datasheet for Vishay NTCLE100E3334JB0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

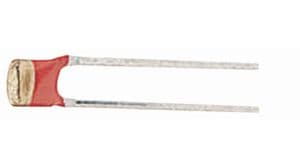

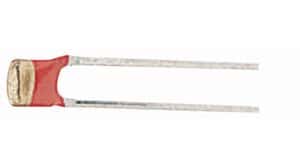

Product Images
