The Vishay thermistor has an accuracy of 1.5% and a maximum power dissipation of 500mW. It is available in a bulk packaging with 500 units per package. The thermistor is RoHS compliant and has a lead-free termination. It can operate between -40°C and 125°C and has a resistance of 47kR with a tolerance of 5%.
Resistance47kR
MountingThrough Hole
Quick Jump:
Technical Specifications
Vishay NTCLE100E3473JB0 technical specifications.
General
| Accuracy | 1.5% |
| Depth | 3mm |
| Height | 9mm |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 2.54mm |
| Length | 3.3mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 500mW |
| Mount | Through Hole |
| Package Quantity | 500 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Resistance | 47kR |
| Resistance Tolerance | 5% |
| RoHS Compliant | Yes |
| Termination | Radial |
| Tolerance | 5% |
Compliance
| RoHS | Compliant |
Datasheet
Vishay NTCLE100E3473JB0 Datasheet
Download the complete datasheet for Vishay NTCLE100E3473JB0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

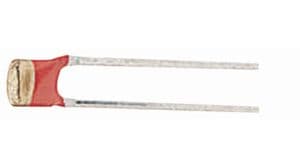

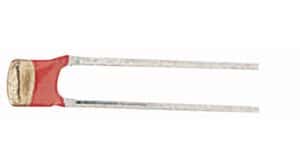

Product Images
