Vishay
NTCLE203E3104GB0
RESISTOR, TEMPERATURE DEPENDENT, NTC, 100000 ohm, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT
Resistance100kR
MountingThrough Hole
Quick Jump:
Technical Specifications
Vishay NTCLE203E3104GB0 technical specifications.
General
Accuracy
1.5%
Depth
3mm
Lead Diameter
0.4mm
Lead Length
38mm
Lead Pitch
2.54mm
Length
46mm
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
100mW
Mount
Through Hole
Package Quantity
500
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
100kR
Resistance Tolerance
2%
Response Time
1.7s
RoHS Compliant
Yes
Termination
Radial
Tolerance
2%
Compliance
RoHS
Compliant
Datasheet
Vishay NTCLE203E3104GB0 Datasheet
Download the complete datasheet for Vishay NTCLE203E3104GB0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

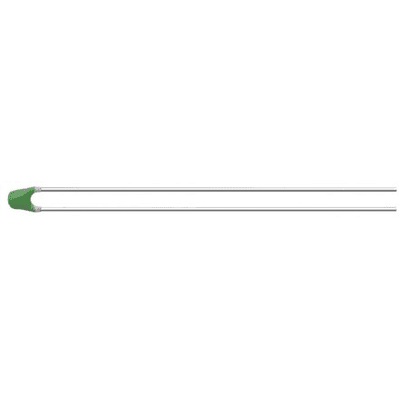

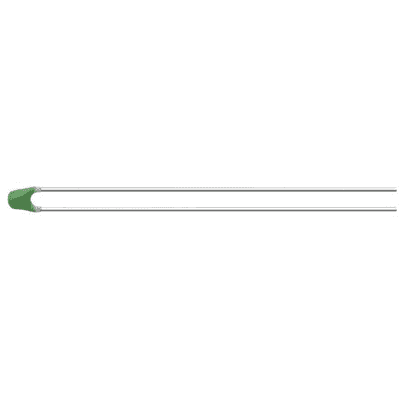

Product Images
