10k Ohm linear cermet potentiometer with 1W power rating and 10% resistance tolerance. Features a panel mount design with a 0.236-inch diameter actuator and 0.984-inch length. Operates across a -55°C to 125°C temperature range and offers IP64 environmental protection. Single gang, single turn unit with solder termination and a DC rated voltage of 350V.
Resistance10kR
MountingPanel
PowerYes
Quick Jump:
Technical Specifications
Vishay P11S1V0FLSY00103KA technical specifications.
General
| Actuator Diameter | 0.236inch |
| Actuator Length | 0.984inch |
| Depth | 12.5mm |
| Height | 13.1mm |
| Length | 20.6mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1W |
| Mount | Panel |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Package Quantity | 20 |
| Packaging | Tray |
| Power | Yes |
| Radiation Hardening | No |
| Ratings | IP64 |
| Reach SVHC Compliant | Unknown |
| Resistance | 10kR |
| Resistance Tolerance | 10% |
| Resistor Type | Cermet |
| Series | P11S |
| Taper | Linear |
| Technology | CERMET |
| Termination | Solder |
| Tolerance | 10% |
| Type | Potentiometer |
| DC Rated Voltage | 350V |
Compliance
| RoHS | Compliant |
Datasheet
Vishay P11S1V0FLSY00103KA Datasheet
Download the complete datasheet for Vishay P11S1V0FLSY00103KA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

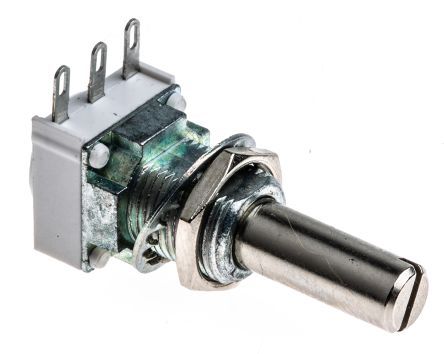

Product Images
