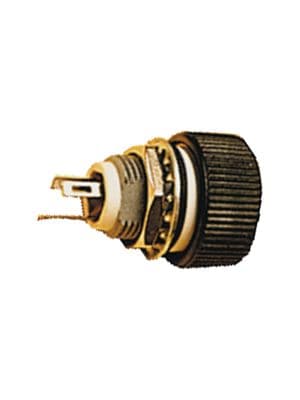

The Vishay P16NM102MAB15 is a panel mount potentiometer with a maximum operating temperature of 125°C and a minimum operating temperature of -55°C. It has a diameter of 16mm and a height of 24mm. The device is rated for 350V DC and has a resistance of 1kR with a tolerance of 20%. It is RoHS compliant and features a CERMET technology with solder termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay P16NM102MAB15 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Vishay P16NM102MAB15 technical specifications.
| Diameter | 16mm |
| Height | 24mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Panel |
| Mounting Hole Diameter | 10mm |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Power | Yes |
| Radiation Hardening | No |
| Ratings | IP67 |
| Reach SVHC Compliant | Unknown |
| Resistance | 1kR |
| Resistance Tolerance | 20% |
| RoHS Compliant | Yes |
| Technology | CERMET |
| Termination | Solder |
| Tolerance | 20% |
| Type | Potentiometer |
| DC Rated Voltage | 350V |
| RoHS | Compliant |
