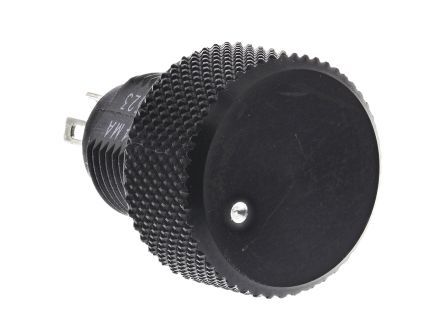

Cermet potentiometer, 100kR resistance with 20% tolerance, rated for 1W max power dissipation and 350V DC. Features a single-turn, linear taper design with solder termination. Panel mountable, this knob-type potentiometer has a 16mm diameter and 24mm height, with an actuator diameter of 0.63 inches and length of 0.37 inches. Operates across a temperature range of -55°C to 125°C and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay P16NM104MAB15 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Vishay P16NM104MAB15 technical specifications.
| Actuator Diameter | 0.63inch |
| Actuator Length | 0.37inch |
| Actuator Type | KNOB TYPE |
| Diameter | 16mm |
| Height | 24mm |
| Max Operating Temperature | 125°C |
| Max Power Dissipation | 1W |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Panel |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Package Quantity | 20 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Resistance | 100kR |
| Resistance Tolerance | 20% |
| Resistor Type | Cermet |
| RoHS Compliant | Yes |
| Series | P16 |
| Taper | Linear |
| Technology | CERMET |
| Termination | Solder |
| Tolerance | 20% |
| Type | Potentiometer |
| DC Rated Voltage | 350V |
| RoHS | Compliant |
