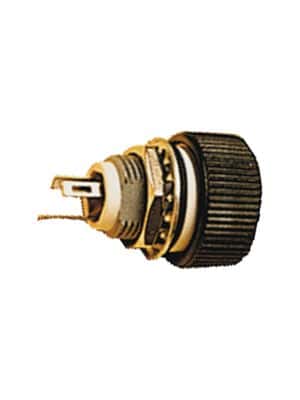

1W cermet potentiometer with 2.2kR resistance and 20% tolerance, featuring a 1-turn linear taper. Panel mount design with a 10mm mounting hole diameter and 16mm body diameter. Operates across a -55°C to 125°C temperature range, with a maximum power dissipation of 1W and a DC rated voltage of 350V. Includes a knob-type actuator with a 0.63-inch diameter and 0.37-inch length. IP67 rated and RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay P16NM222MAB15 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Vishay P16NM222MAB15 technical specifications.
| Actuator Diameter | 0.63inch |
| Actuator Length | 0.37inch |
| Actuator Type | KNOB TYPE |
| Diameter | 16mm |
| Length | 8.5mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1W |
| Mount | Panel |
| Mounting Hole Diameter | 10mm |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Package Quantity | 20 |
| Packaging | Bulk |
| Power | Yes |
| Radiation Hardening | No |
| Ratings | IP67 |
| Reach SVHC Compliant | Unknown |
| Resistance | 2.2kR |
| Resistance Tolerance | 20% |
| Resistor Type | Cermet |
| RoHS Compliant | Yes |
| Series | P16 |
| Taper | Linear |
| Technology | CERMET |
| Termination | Solder |
| Tolerance | 20% |
| Type | Potentiometer |
| DC Rated Voltage | 350V |
| RoHS | Compliant |
