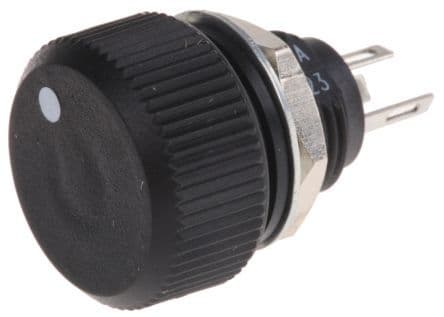

1W cermet potentiometer with 100 ohm resistance and 20% tolerance. Features a knob-type actuator, single turn, linear taper, and solder termination. Rated for 10V DC and operates within a -40°C to 85°C temperature range. Panel mount design with a 16mm diameter and IP67 rating.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay P16NP101MAB15 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Vishay P16NP101MAB15 technical specifications.
| Actuator Type | KNOB TYPE |
| Package/Case | B |
| Diameter | 16mm |
| Height | 24.5mm |
| Length | 16mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1W |
| Mount | Panel |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Package Quantity | 20 |
| Packaging | Bulk |
| Power | Yes |
| Radiation Hardening | No |
| Ratings | IP67 |
| Reach SVHC Compliant | Unknown |
| Resistance | 100R |
| Resistance Tolerance | 20% |
| Resistor Type | Cermet |
| RoHS Compliant | Yes |
| Series | P16 |
| Taper | Linear |
| Technology | CERMET |
| Termination | Solder |
| Tolerance | 20% |
| Type | Potentiometer |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
| RoHS | Compliant |
