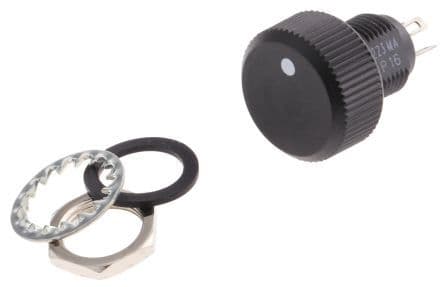

1W Cermet potentiometer with 22kR resistance and 20% tolerance. Features a knob-type actuator, single turn, linear taper, and solder termination. Panel mount design with a 10mm mounting hole diameter. Operates within a -40°C to 85°C temperature range and has a 148V DC rated voltage. IP67 rated for environmental protection.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay P16NP223MAB15 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Vishay P16NP223MAB15 technical specifications.
| Actuator Type | KNOB TYPE |
| Diameter | 16mm |
| Height | 24mm |
| Length | 16mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1W |
| Mount | Panel |
| Mounting Hole Diameter | 10mm |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Package Quantity | 20 |
| Packaging | Bulk |
| Power | Yes |
| Radiation Hardening | No |
| Ratings | IP67 |
| Reach SVHC Compliant | Unknown |
| Resistance | 22kR |
| Resistance Tolerance | 20% |
| Resistor Type | Cermet |
| RoHS Compliant | Yes |
| Series | P16 |
| Taper | Linear |
| Technology | CERMET |
| Termination | Solder |
| Tolerance | 20% |
| Type | Potentiometer |
| Voltage Rating | 148V |
| DC Rated Voltage | 148V |
| Weight | 0.158733oz |
| RoHS | Compliant |
