Bidirectional Transient Voltage Suppressor (TVS) diode offering 600W peak pulse power dissipation. Features a 14.5V clamping voltage and 9.5V minimum breakdown voltage. Designed for surface mount applications in a DO-214AA package, this silicon TVS diode operates bidirectionally with a reverse standoff voltage of 8.55V. Maximum reverse leakage current is 20uA, with a maximum surge current of 41.4A. Operating temperature range spans from -65°C to 150°C.
PackageDO-214AA
Voltage Rating8.55V
MountingSurface Mount
PolarityBidirectional
Quick Jump:
Technical Specifications
Vishay P6SMB10CA-E3/52 technical specifications.
General
| Package/Case | DO-214AA |
| Clamping Voltage | 14.5V |
| Diode Type | ZENER |
| Direction | Bidirectional |
| Height | 2.24mm |
| Length | 4.57mm |
| Min Breakdown Voltage | 9.5V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 600W |
| Max Reverse Leakage Current | 20uA |
| Max Surge Current | 41.4A |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 1 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 41.4A |
| Peak Pulse Power | 600W |
| Polarity | Bidirectional |
| Power Line Protection | No |
| Reverse Standoff Voltage | 8.55V |
| RoHS Compliant | Yes |
| Series | P6SMB, TransZorb® |
| Termination | SMD/SMT |
| Weight | 0.003386oz |
| Width | 3.94mm |
| Working Voltage | 8.55V |
Compliance
| RoHS | Compliant |
Datasheet
Vishay P6SMB10CA-E3/52 Datasheet
Download the complete datasheet for Vishay P6SMB10CA-E3/52 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

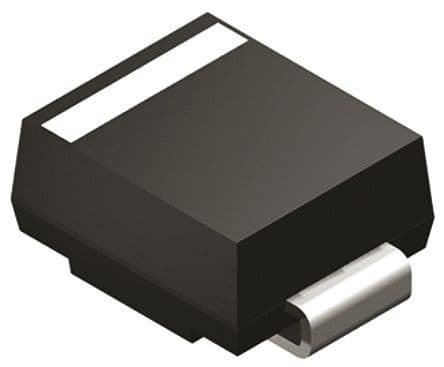

Product Images
