Unidirectional TVS diode for transient voltage suppression, featuring a 600W peak pulse power rating and 100A maximum surge current capability. This silicon diode offers a minimum breakdown voltage of 11.4V and a clamping voltage of 16.7V, with a low leakage current of 5uA. Designed for surface mounting in a DO-214AA package, it operates across a wide temperature range from -65°C to 150°C.
PackageDO-214AA
MountingSurface Mount
PolarityUnidirectional
Quick Jump:
Technical Specifications
Vishay P6SMB12A-E3/52 technical specifications.
General
Package/Case
DO-214AA
Clamping Voltage
16.7V
Diode Type
ZENER
Direction
Unidirectional
Leakage Current
5uA
Min Breakdown Voltage
11.4V
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
600W
Max Reverse Leakage Current
5uA
Max Surge Current
100A
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Number of Unidirectional Channels
1
Operating Supply Voltage
10.2V
Package Quantity
750
Packaging
Tape and Reel
Peak Pulse Current
35.9A
Peak Pulse Power
600W
Polarity
Unidirectional
Power Line Protection
No
Reverse Breakdown Voltage
11.4V
Reverse Standoff Voltage
10.2V
RoHS Compliant
Yes
Series
TransZorb®
Compliance
RoHS
Compliant
Datasheet
Vishay P6SMB12A-E3/52 Datasheet
Download the complete datasheet for Vishay P6SMB12A-E3/52 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

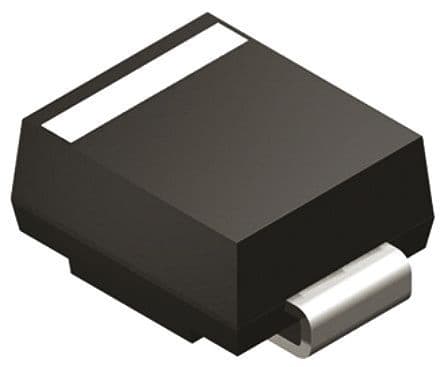

Product Images
