Unidirectional TVS Diode, 600W Peak Pulse Power, 219V Clamping Voltage. Features 152V Reverse Breakdown Voltage, 136V Reverse Standoff Voltage, and 1µA Leakage Current. Designed for surface mount applications in a DO-214AA package. Operates from -65°C to 150°C with 600W Max Power Dissipation and 100A Max Surge Current. RoHS compliant.
PackageDO-214AA
MountingSurface Mount
PolarityUnidirectional
Power600W
Quick Jump:
Technical Specifications
Vishay P6SMB160A-E3/52 technical specifications.
General
| Package/Case | DO-214AA |
| Clamping Voltage | 219V |
| Clamping Voltage-Max | 219V |
| Direction | Unidirectional |
| Lead Free | Lead Free |
| Leakage Current | 1uA |
| Max Breakdown Voltage | 168V |
| Min Breakdown Voltage | 152V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 600W |
| Max Reverse Leakage Current | 1uA |
| Max Surge Current | 100A |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Operating Supply Voltage | 136V |
| Package Quantity | 750 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 2.7A |
| Peak Pulse Power | 600W |
| Polarity | Unidirectional |
| Power Dissipation | 600W |
| Reverse Breakdown Voltage | 152V |
| Reverse Standoff Voltage | 136V |
| RoHS Compliant | Yes |
| Series | P6SMB |
| Termination | SMD/SMT |
Compliance
| RoHS | Compliant |
Datasheet
Vishay P6SMB160A-E3/52 Datasheet
Download the complete datasheet for Vishay P6SMB160A-E3/52 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

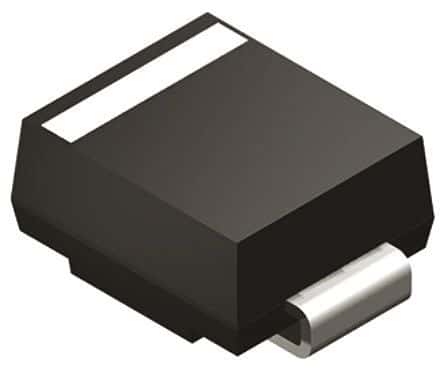

Product Images
