Bidirectional Transient Voltage Suppressor (TVS) diode designed for surface mount applications in an SMB package. Features 600W peak pulse power dissipation and a 100A maximum surge current capability. Offers a 13.6V reverse standoff voltage and a 22.5V clamping voltage. Operates across a wide temperature range from -65°C to 150°C with a low leakage current of 1µA. This RoHS compliant component is supplied on tape and reel.
PackageSMB
MountingSurface Mount
PolarityBidirectional
Quick Jump:
Technical Specifications
Vishay P6SMB16CA-E3/52 technical specifications.
General
| Package/Case | SMB |
| Clamping Voltage | 22.5V |
| Direction | Bidirectional |
| Height | 2.24mm |
| Lead Free | Lead Free |
| Leakage Current | 1uA |
| Length | 4.57mm |
| Min Breakdown Voltage | 15.2V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 600W |
| Max Reverse Leakage Current | 1uA |
| Max Surge Current | 100A |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Operating Supply Voltage | 13.6V |
| Package Quantity | 750 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 26.7A |
| Peak Pulse Power | 600W |
| Polarity | Bidirectional |
| Reverse Breakdown Voltage | 15.2V |
| Reverse Standoff Voltage | 13.6V |
| RoHS Compliant | Yes |
| Series | TransZorb® |
| Width | 3.94mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay P6SMB16CA-E3/52 Datasheet
Download the complete datasheet for Vishay P6SMB16CA-E3/52 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

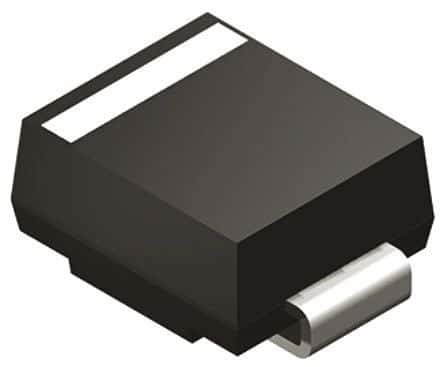

Product Images
