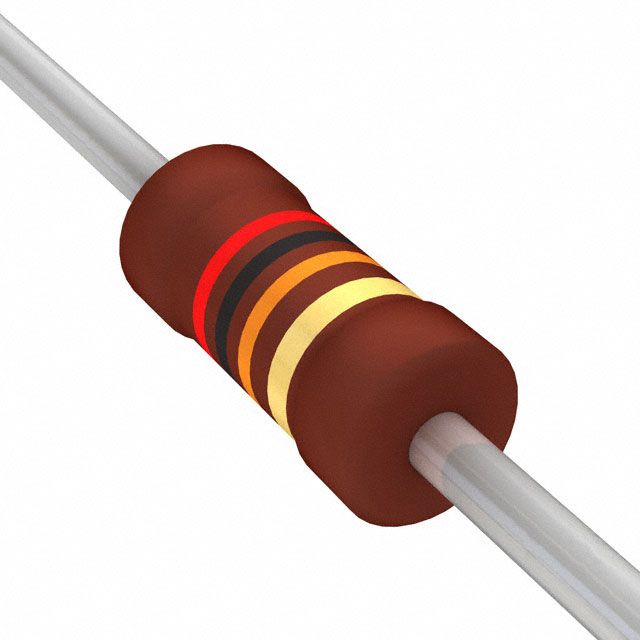

2W metal film resistor with 5% tolerance and 250 ppm TCR. Features 20kΩ resistance, 500V DC rated voltage, and axial leaded termination. Cylindrical construction with 3.9mm diameter and 12mm length, suitable for through-hole mounting. Automotive AEC-Q200 qualified with flame retardant coating and conformal packaging. RoHS compliant with tin contact plating.
PackageConformal
Resistance20kR
Voltage Rating500V
Quick Jump:
Technical Specifications
Vishay PR02000202002JR500 technical specifications.
General
Package/Case
Conformal
Construction
Cylindrical
Contact Plating
Tin
Diameter
3.9mm
Features
Flame Retardant Coating, Automotive AEC-Q200
Lead Diameter
0.58mm
Lead Free
Lead Free
Length
12mm
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Max Power Dissipation
2W
Military Standard
Not
Number of Terminations
2
Operating Supply Voltage
500V
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
20kR
Resistance Tolerance
5%
Resistor Type
Metal Film
RoHS Compliant
Yes
Series
PR02
Technology
METAL FILM
Termination
Axial
Tolerance
5%
Voltage Rating
500V
DC Rated Voltage
500V
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Vishay PR02000202002JR500 Datasheet
Download the complete datasheet for Vishay PR02000202002JR500 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
