2W metal film fixed resistor with 220 ohm resistance and 5% tolerance. Features axial leaded, through-hole mounting with a cylindrical, conformal package. Operates across a -55°C to 155°C temperature range with a 500V DC rated voltage. Automotive AEC-Q200 qualified and RoHS compliant.
PackageConformal
Resistance220R
Voltage Rating500V
MountingThrough Hole
Quick Jump:
Technical Specifications
Vishay PR02000202200JA100 technical specifications.
General
Package/Case
Conformal
Construction
Cylindrical
Contact Plating
Tin
Diameter
3.9mm
Features
Automotive AEC-Q200
Lead Free
Lead Free
Length
12mm
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Max Power Dissipation
2W
Military Standard
Not
Mount
Through Hole
Number of Terminations
2
Operating Supply Voltage
500V
Packaging
Cut Tape
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
220R
Resistance Tolerance
5%
Resistor Type
Metal Film
RoHS Compliant
Yes
Series
PR02
Technology
METAL FILM
Termination
Axial
Tolerance
5%
Voltage Rating
500V
DC Rated Voltage
500V
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Vishay PR02000202200JA100 Datasheet
Download the complete datasheet for Vishay PR02000202200JA100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

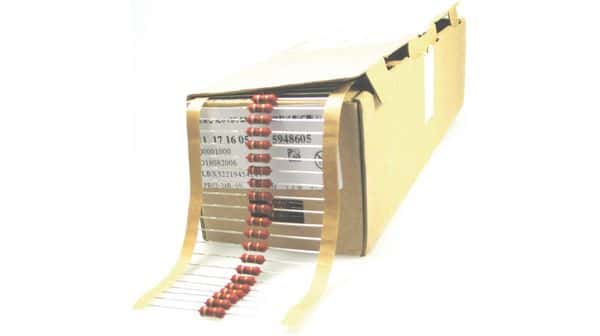

Product Images
