Metal film resistor with 120 ohm resistance and 5% tolerance. Features a 3W power rating and 750V DC rated voltage. Operates across a wide temperature range from -55°C to 155°C. Through-hole mounting with axial leads, cylindrical construction, and a conformal package. Compliant with RoHS standards.
PackageConformal
Resistance120R
Voltage Rating750V
Quick Jump:
Technical Specifications
Vishay PR03000201200JAC00 technical specifications.
General
| Package/Case | Conformal |
| Construction | Cylindrical |
| Contact Plating | Tin |
| Diameter | 5.2mm |
| Features | Flame Retardant Coating |
| Lead Diameter | 0.78mm |
| Lead Free | Lead Free |
| Length | 19.5mm |
| Max Operating Temperature | 155°C |
| Max Power Dissipation | 3W |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Number of Terminations | 2 |
| Operating Supply Voltage | 750V |
| Package Quantity | 1 |

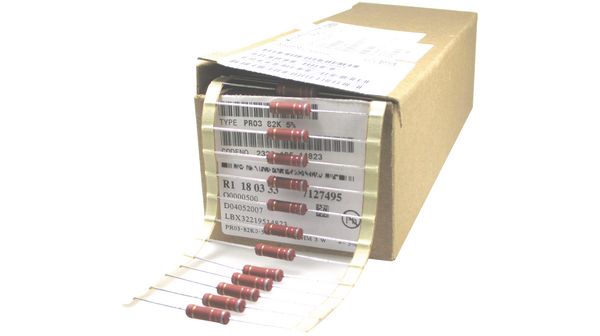

| Packaging | Ammo Pack |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Resistance | 120R |
| Resistance Tolerance | 5% |
| Resistor Type | Metal Film |
| RoHS Compliant | Yes |
| Series | PR03 |
| Termination | Axial |
| Tolerance | 5% |
| Voltage Rating | 750V |
| DC Rated Voltage | 750V |
| Width | 5.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay PR03000201200JAC00 Datasheet
Download the complete datasheet for Vishay PR03000201200JAC00 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

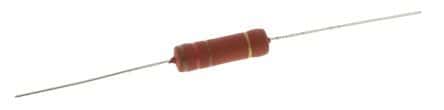

Product Images
