Axial metal film resistor with 470k Ohm resistance and 5% tolerance. Features a 750VDC rated voltage and 3W power dissipation. Operates across a -55°C to 155°C temperature range with a 250PPM/°C temperature coefficient. Conformal package with tin contact plating, 19.5mm length, and 5.2mm diameter. RoHS compliant with a flame retardant coating.
PackageConformal
Resistance470kR
Voltage Rating750V
Quick Jump:
Technical Specifications
Vishay PR03000204703JAC00 technical specifications.
General
Package/Case
Conformal
Contact Plating
Tin
Diameter
5.2mm
Features
Flame Retardant Coating
Lead Diameter
0.78mm
Lead Free
Lead Free
Length
19.5mm
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Max Power Dissipation
3W
Number of Terminations
2
Operating Supply Voltage
750V
Package Quantity
1

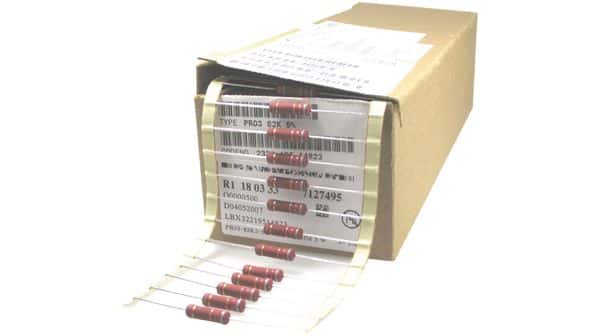

Packaging
Ammo Pack
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
470kR
Resistance Tolerance
5%
Resistor Type
Metal Film
RoHS Compliant
Yes
Series
PR03
Technology
METAL FILM
Termination
Axial
Tolerance
5%
Voltage Rating
750V
DC Rated Voltage
750V
Width
5.2mm
Compliance
RoHS
Compliant
Datasheet
Vishay PR03000204703JAC00 Datasheet
Download the complete datasheet for Vishay PR03000204703JAC00 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
