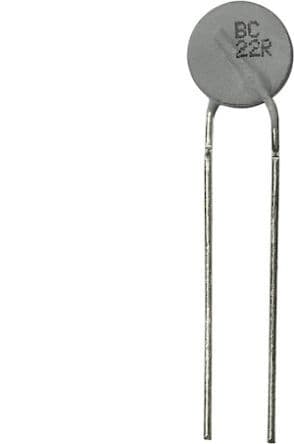

The Vishay PTCCL05H280HBE is a thermistor with a 20% tolerance and a resistance of 500 ohms. It has a maximum current rating of 200mA and can operate within a temperature range of 0°C to 70°C. The thermistor is mounted through a hole and packaged in bulk quantities of 500 units.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay PTCCL05H280HBE datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | Radial |
| Depth | 5.5mm |
| Hold Current | 28mA |
| Max Current Rating | 200mA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 265V |
| Mount | Through Hole |
| Package Quantity | 500 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Resistance | 500R |
| RoHS Compliant | Yes |
| Series | 660 |
| Termination | Radial |
| Tolerance | 20% |
| Trip Current | 42mA |
| RoHS | Compliant |
Download the complete datasheet for Vishay PTCCL05H280HBE to view detailed technical specifications.
