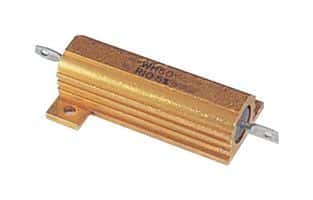

Wirewound fixed resistor with 2 ohm resistance and 1% tolerance. Features 6.25W power dissipation, 250°C max operating temperature, and chassis mount capability. Moisture resistant and lead-free, this component utilizes axial solder terminations and a wirewound technology.
PackageAluminum
Resistance2R
Quick Jump:
Technical Specifications
Vishay RH0102R000FE02 technical specifications.
General
| Package/Case | Aluminum |
| Depth | 20.32mm |
| Diameter | 10.67mm |
| Features | Moisture Resistant |
| Height | 9.91mm |
| Lead Free | Lead Free |
| Lead/Base Style | Solder |
| Length | 34.93mm |
| Max Operating Temperature | 250°C |
| Max Power Dissipation | 12.5W |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Package Quantity | 10 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Resistance | 2R |
| Resistance Tolerance | 1% |
| Resistor Type | Wirewound |
| RoHS Compliant | Yes |
| Series | RH |
| Technology | WIRE WOUND |
| Termination | Axial |
| Tolerance | 1% |
| DC Rated Voltage | 4.47V |
| Width | 20.32mm |
Compliance
| RoHS | Compliant |
