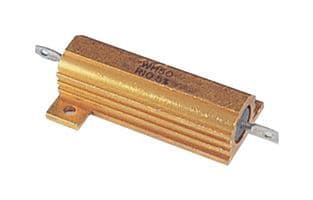

Wirewound chassis mount resistor with 330 Ohm resistance and 1% tolerance. Features 12.5W maximum power dissipation and a wide operating temperature range from -55°C to 250°C. Constructed with an aluminum package and axial solder terminations, this moisture-resistant component is RoHS compliant and lead-free. Rated for 57.4V DC.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay RH010330R0FE02 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | Aluminum |
| Depth | 20.32mm |
| Features | Moisture Resistant |
| Height | 9.91mm |
| Lead Free | Lead Free |
| Lead/Base Style | Solder |
| Length | 19.05mm |
| Max Operating Temperature | 250°C |
| Max Power Dissipation | 12.5W |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Resistance | 330R |
| Resistance Tolerance | 1% |
| Resistor Type | Wirewound |
| RoHS Compliant | Yes |
| Series | RH |
| Technology | WIRE WOUND |
| Termination | Axial |
| Tolerance | 1% |
| DC Rated Voltage | 57.4V |
| Width | 20.32mm |
| RoHS | Compliant |
