PackageDO-219AB
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay S07G-GS08 technical specifications.
General
Average Rectified Current
700mA
Package/Case
DO-219AB
Forward Current
1.5A
Height
1.08mm
Length
2.9mm
Max Forward Surge Current (Ifsm)
25A
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
400V
Max Reverse Current
10uA
Max Reverse Voltage (DC)
400V
Max Surge Current
25A
Mount
Surface Mount
Package Quantity
3000
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
25A
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Reverse Recovery Time
1.8us
RoHS Compliant
Yes
Series
Automotive, AEC-Q101
Termination
SMD/SMT
Width
1.9mm
Compliance
RoHS
Compliant
Datasheet
Vishay S07G-GS08 Datasheet
Download the complete datasheet for Vishay S07G-GS08 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

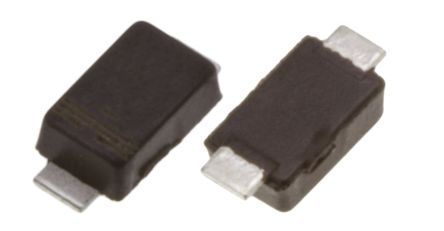

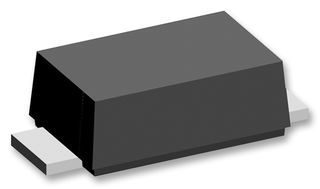

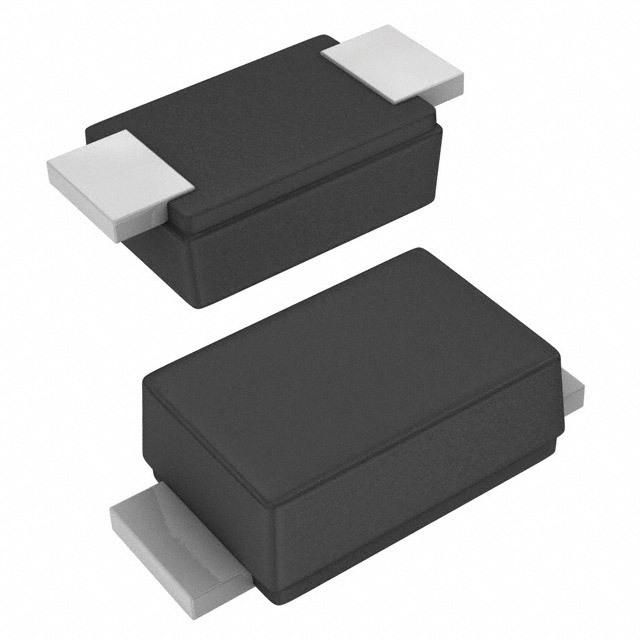

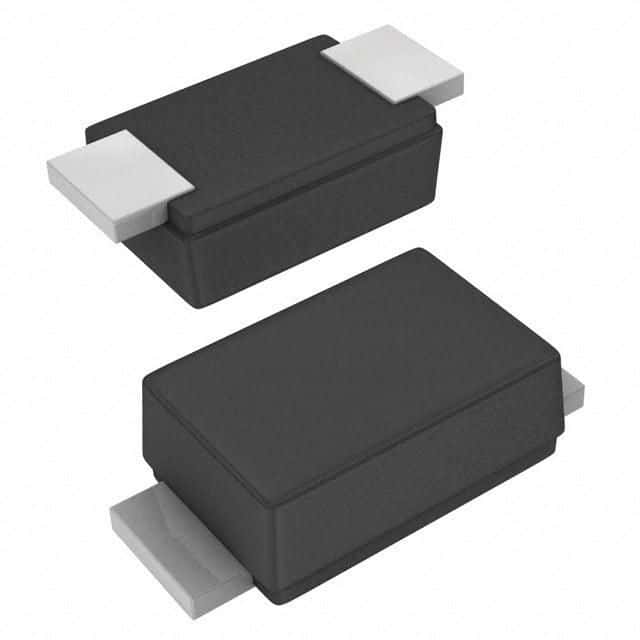

Product Images
