Surface mount switching diode with 1kV repetitive reverse voltage and 1A average rectified current. Features a low capacitance of 12pF and a fast reverse recovery time of 1.8µs. Designed for high-temperature operation up to 150°C, with a maximum forward surge current of 40A. Packaged in a compact SMA case, supplied on tape and reel.
PackageSMA
Voltage1kV
Current1A
Capacitance12pF
Quick Jump:
Technical Specifications
Vishay S1M-E3/5AT technical specifications.
General
Average Rectified Current
1A
Capacitance
12pF
Package/Case
SMA
Current
1A
Forward Current
1A
Height
2.09mm
Lead Free
Lead Free
Length
4.5mm
Max Forward Surge Current (Ifsm)
40A
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
1kV
Max Reverse Current
5uA
Max Reverse Voltage (DC)
1kV
Max Surge Current
30A
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
30A
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Reverse Recovery Time
1.8us
Reverse Voltage
1kV
RoHS Compliant
Yes
Voltage
1kV
Width
2.79mm
Compliance
RoHS
Compliant
Datasheet
Vishay S1M-E3/5AT Datasheet
Download the complete datasheet for Vishay S1M-E3/5AT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

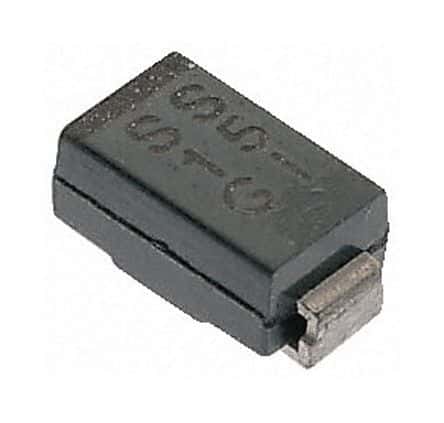

Product Images
