Unidirectional TVS Diode, 500W Peak Pulse Power, 15V Reverse Standoff Voltage, and 16.7V Reverse Breakdown Voltage. Features a 24.4V Clamping Voltage and 20.5A Peak Pulse Current. This Silicon TVS Diode is housed in a DO-204AC package with axial termination, suitable for through-hole mounting. Operating temperature range is -55°C to 175°C, with a low leakage current of 1uA. RoHS compliant.
PackageDO-204AC
Voltage Rating3.5V
MountingThrough Hole
PolarityUnidirectional
Quick Jump:
Technical Specifications
Vishay SA15A-E3/54 technical specifications.
General
| Package/Case | DO-204AC |
| Clamping Voltage | 24.4V |
| Clamping Voltage-Max | 24.4V |
| Diameter | 3.6mm |
| Diode Type | ZENER |
| Direction | Unidirectional |
| Lead Free | Lead Free |
| Leakage Current | 1uA |
| Length | 0.299inch |
| Max Breakdown Voltage | 18.5V |
| Min Breakdown Voltage | 16.7V |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Reverse Leakage Current | 1uA |
| Max Surge Current | 20.5A |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 15V |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 20.5A |
| Peak Pulse Power | 500W |
| Polarity | Unidirectional |
| Power Dissipation | 500W |
| Power Line Protection | No |
| Radiation Hardening | No |
| Reverse Breakdown Voltage | 16.7V |
| Reverse Standoff Voltage | 15V |
| RoHS Compliant | Yes |
| Series | TransZorb® |
| Termination | Axial |
| Working Voltage | 3.5V |
Compliance
| RoHS | Compliant |
Datasheet
Vishay SA15A-E3/54 Datasheet
Download the complete datasheet for Vishay SA15A-E3/54 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

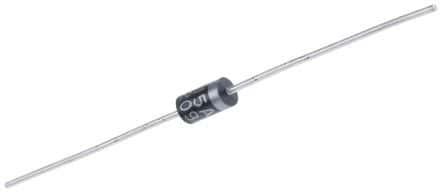

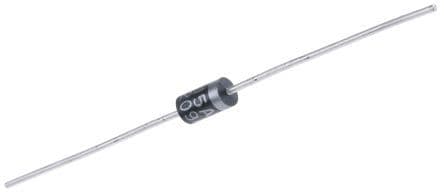

Product Images
