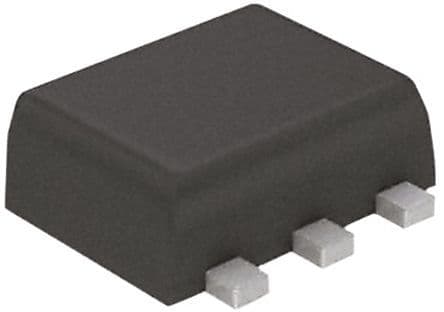

P-Channel TrenchFET® JFET with -60V Drain-Source Voltage (Vdss) and 190mA Continuous Drain Current (ID). Features 4Ω maximum Drain-Source On-Resistance (Rds On) and 20V Gate-to-Source Voltage (Vgs). Operates from -55°C to 150°C with 250mW maximum power dissipation. Surface mountable in a 6-pin SOT-563F package, this component is RoHS compliant and supplied on tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay SI1025X-T1-GE3 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Vishay SI1025X-T1-GE3 technical specifications.
| Package/Case | SC |
| Continuous Drain Current (ID) | 190mA |
| Drain to Source Resistance | 8R |
| Drain to Source Voltage (Vdss) | -60V |
| Drain-source On Resistance-Max | 4R |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 0.6mm |
| Input Capacitance | 23pF |
| Lead Free | Lead Free |
| Length | 1.7mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 250mW |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | P-CHANNEL |
| Radiation Hardening | No |
| Rds On Max | 4R |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | TrenchFET® |
| Threshold Voltage | -3V |
| Weight | 0.001129oz |
| Width | 1.2mm |
| RoHS | Compliant |
