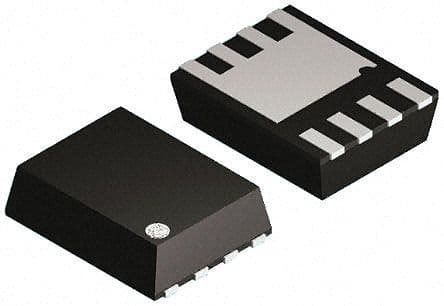

P-channel MOSFET featuring -80V drain-source voltage and 28A continuous drain current. Offers a low 25mΩ drain-source on-resistance and 83W maximum power dissipation. Designed for surface mounting in an 8-pin PowerPAK SO package, this component operates from -55°C to 150°C. Key switching characteristics include a 45ns turn-on delay and 110ns fall time.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay SI7469DP-T1-E3 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Vishay SI7469DP-T1-E3 technical specifications.
| Continuous Drain Current (ID) | 28A |
| Current | 27A |
| Drain to Source Resistance | 25mR |
| Drain to Source Voltage (Vdss) | -80V |
| Drain-source On Resistance-Max | 25MR |
| Fall Time | 110ns |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 1.04mm |
| Input Capacitance | 4.7nF |
| Lead Free | Lead Free |
| Length | 4.9mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 83W |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | P-CHANNEL |
| Power Dissipation | 5.2W |
| Rds On Max | 25mR |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | TrenchFET® |
| Threshold Voltage | -3V |
| Turn-Off Delay Time | 105ns |
| Turn-On Delay Time | 45ns |
| Voltage | 80V |
| Weight | 0.01787oz |
| Width | 5.89mm |
| RoHS | Compliant |
