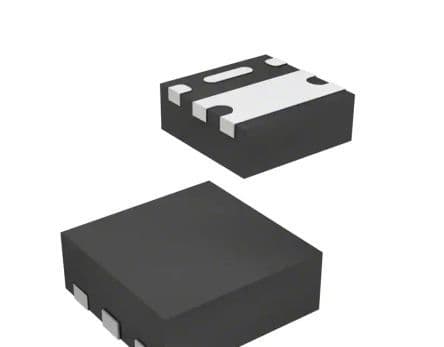

Single N-Channel Power MOSFET, designed for surface mount applications. Features a 200V drain-source voltage (Vdss) and a maximum drain-source on-resistance (Rds On) of 1.38 Ohms. Offers a continuous drain current (ID) of 2.6A and a power dissipation of 3.5W. Operates within a temperature range of -55°C to 150°C, with fast switching characteristics including a 5ns turn-on delay and 12ns fall time. Packaged in a compact SC-70-6 (2.05mm x 2.05mm x 0.75mm) format, this RoHS compliant component is supplied on tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay SIA456DJ-T1-GE3 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Vishay SIA456DJ-T1-GE3 technical specifications.
| Package/Case | SC |
| Continuous Drain Current (ID) | 2.6A |
| Drain to Source Resistance | 1.38R |
| Drain to Source Voltage (Vdss) | 200V |
| Drain-source On Resistance-Max | 1.38R |
| Fall Time | 12ns |
| Gate to Source Voltage (Vgs) | 16V |
| Height | 0.75mm |
| Input Capacitance | 350pF |
| Lead Free | Lead Free |
| Length | 2.05mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 3.5W |
| Mount | Surface Mount |
| Nominal Vgs | 1.4V |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | N-CHANNEL |
| Power Dissipation | 3.5W |
| Radiation Hardening | No |
| Rds On Max | 1.38R |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | TrenchFET® |
| Threshold Voltage | 1.4V |
| Turn-Off Delay Time | 16ns |
| Turn-On Delay Time | 5ns |
| Width | 2.05mm |
| RoHS | Compliant |
