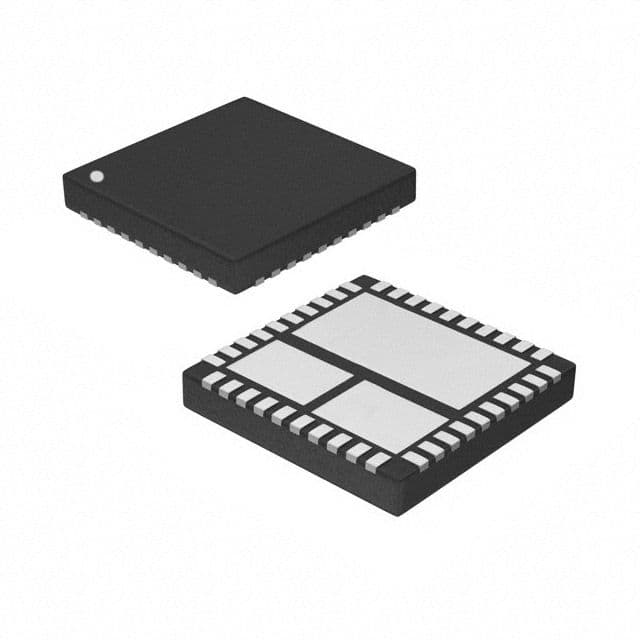

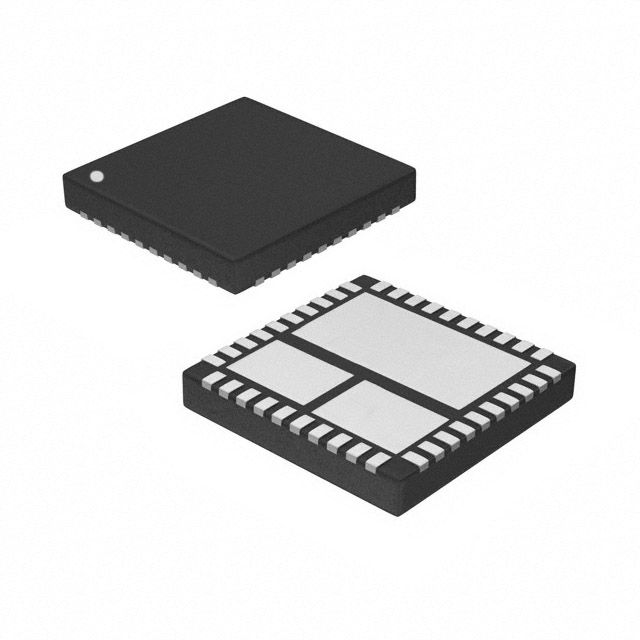

High-performance DrMOS power stage featuring a single gate driver and single output, capable of delivering 40A output current. This surface mount component operates from a 3V to 16V supply voltage range and offers a maximum power dissipation of 25W. Key specifications include an 8ns fall time, 20ns turn-off delay time, and integrated over-temperature fault protection. The device utilizes a PWM interface and is packaged in a 40-pin PowerPAK MLP66 on tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay SIC779CD-T1-GE3 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Fall Time | 8ns |
| Fault Protection | Over Temperature |
| Interface | PWM |
| Lead Free | Lead Free |
| Length | 6mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 25W |
| Max Supply Voltage | 16V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Drivers | 1 |
| Number of Outputs | 1 |
| Operating Supply Current | 600uA |
| Output Current | 40A |
| Output Current per Channel | 40A |
| Output Voltage | 5V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Turn-Off Delay Time | 20ns |
| RoHS | Compliant |
Download the complete datasheet for Vishay SIC779CD-T1-GE3 to view detailed technical specifications.
