Peripheral driver IC featuring a single high-side output with a maximum output current of 5A and a low on-state resistance of 8mR. Operates from a 2.3V to 5.5V supply range with a nominal supply current of 110nA. Includes an On/Off interface and a maximum power dissipation of 1.096W. Designed for surface mount applications with a WCSP-12 package, operating between -40°C and 85°C. RoHS compliant.
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay SIP32102DB-T1-GE1 technical specifications.
General
| Height | 545um |
| Interface | On/Off |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 5A |
| Max Power Dissipation | 1.096W |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.3V |
| Mount | Surface Mount |
| Nominal Supply Current | 110nA |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| On-State Resistance | 8mR |
| Output Configuration | High Side |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Turn-Off Delay Time | 120us |
| Turn-On Delay Time | 800us |
Compliance
| RoHS | Compliant |
Datasheet
Vishay SIP32102DB-T1-GE1 Datasheet
Download the complete datasheet for Vishay SIP32102DB-T1-GE1 to view detailed technical specifications.
No datasheet is available for this part.

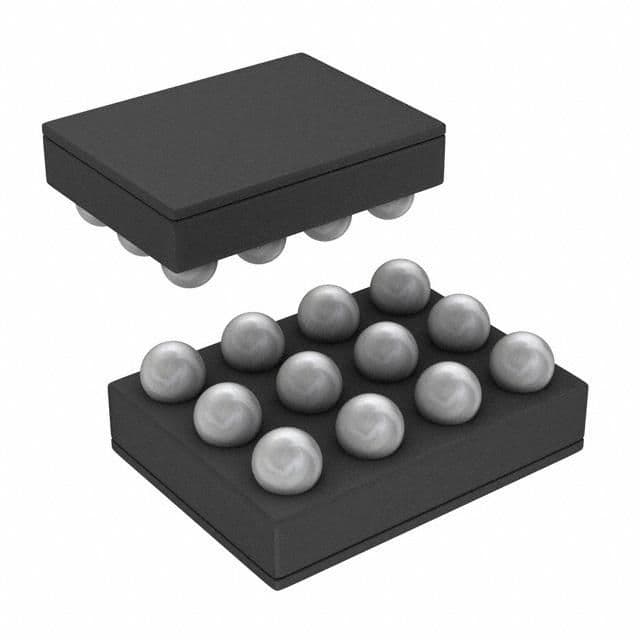

Product Images
