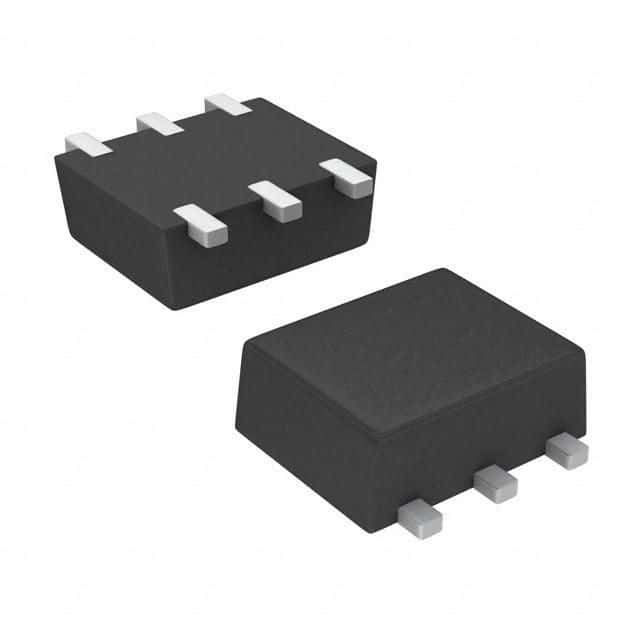

Vishay SIP42104DX-T1-E3 technical specifications.
| Package/Case | SOT-666 |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 250mA |
| Max Power Dissipation | 172mW |
| Max Supply Current | 5uA |
| Max Supply Voltage | 4.2V |
| Min Supply Voltage | 2.3V |
| Mount | Surface Mount |
| Number of Drivers | 2 |
| Number of Outputs | 2 |
| On-state Resistance-Max | 1.6R |
| Operating Supply Current | 5uA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 172mW |
| Radiation Hardening | No |
| Rated Current-Max | 250mA |
| RoHS Compliant | No |
| RoHS | Not CompliantNo |
