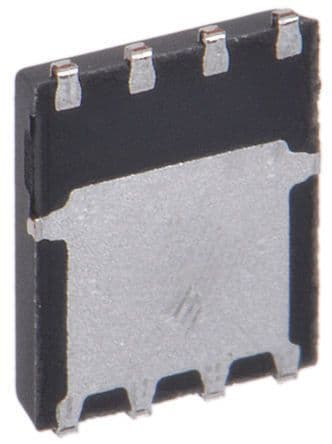

N-CHANNEL Power MOSFET featuring 80V Drain-Source Voltage (Vdss) and 30A Continuous Drain Current (ID). This surface mount component offers a low Drain-Source On Resistance (Rds On) of 19.5mR at a 10V Gate-Source Voltage (Vgs). With a maximum power dissipation of 52W and operating temperatures from -55°C to 150°C, it is suitable for general-purpose power applications. The component boasts fast switching speeds with turn-on and turn-off delay times of 9ns and 15ns respectively.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay SIS468DN-T1-GE3 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Vishay SIS468DN-T1-GE3 technical specifications.
| Continuous Drain Current (ID) | 30A |
| Drain to Source Resistance | 19.5mR |
| Drain to Source Voltage (Vdss) | 80V |
| Drain-source On Resistance-Max | 19.5MR |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 1.12mm |
| Input Capacitance | 780pF |
| Lead Free | Lead Free |
| Length | 3.4mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 52W |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | N-CHANNEL |
| Radiation Hardening | No |
| Rds On Max | 19.5mR |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | TrenchFET® |
| Threshold Voltage | 1.5V |
| Turn-Off Delay Time | 15ns |
| Turn-On Delay Time | 9ns |
| Width | 3.4mm |
| RoHS | Compliant |
