Technical Specifications
Vishay SIZ914DT-T1-GE3 technical specifications.
General
| Continuous Drain Current (ID) | 40A |
| Drain to Source Resistance | 1.37mR |
| Drain to Source Voltage (Vdss) | 30V |
| Fall Time | 19ns |
| FET Type | 2 N-Channel |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 0.75mm |
| Input Capacitance | 1.208nF |
| Length | 6mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 100W |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | N-CHANNEL |
| Rds On Max | 6.4mR |
| Series | TrenchFET® |
| Turn-Off Delay Time | 40ns |
| Turn-On Delay Time | 40ns |
| Width | 5mm |
Compliance
| RoHS | Not Compliant |
Datasheet
Vishay SIZ914DT-T1-GE3 Datasheet
Download the complete datasheet for Vishay SIZ914DT-T1-GE3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

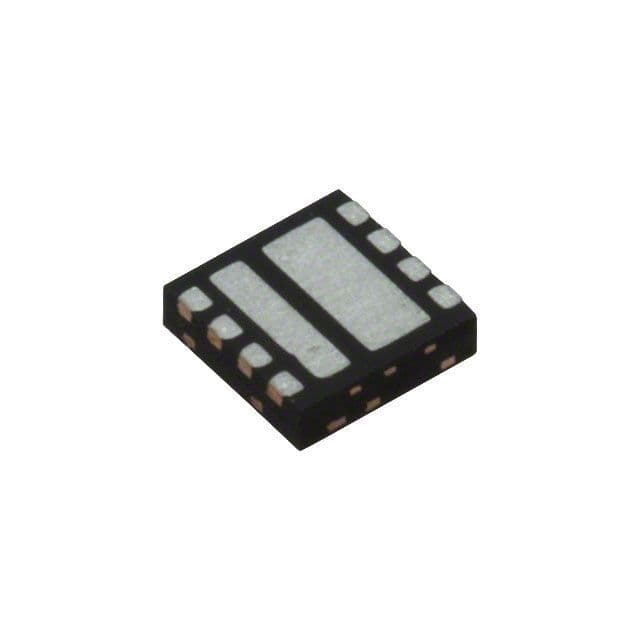

Product Images
