Vishay
SL03-GS08
DIODE 1.1 A, 30 V, SILICON, RECTIFIER DIODE, DO-219AB, ROHS COMPLIANT, SMF, 2 PIN, Rectifier Diode
PackageDO-219AB
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay SL03-GS08 technical specifications.
General
Average Rectified Current
1.1A
Package/Case
DO-219AB
Forward Current
1.1A
Lead Free
Lead Free
Max Forward Surge Current (Ifsm)
40A
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
30V
Max Reverse Current
130uA
Max Reverse Leakage Current
130uA
Max Reverse Voltage (DC)
30V
Max Surge Current
40A
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
40A
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Vishay SL03-GS08 Datasheet
Download the complete datasheet for Vishay SL03-GS08 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

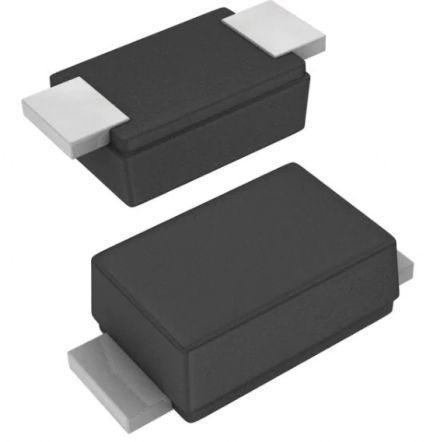

Product Images
