Vishay
SL03-GS18
DIODE 1.1 A, 30 V, SILICON, RECTIFIER DIODE, DO-219AB, ROHS COMPLIANT, SMF, 2 PIN, Rectifier Diode
PackageDO-219AB
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay SL03-GS18 technical specifications.
General
Average Rectified Current
1.1A
Package/Case
DO-219AB
Forward Current
1.1A
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
30V
Max Reverse Current
130uA
Max Reverse Leakage Current
130uA
Max Reverse Voltage (DC)
30V
Max Surge Current
40A
Mount
Surface Mount
Package Quantity
50000
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
40A
Radiation Hardening
No
Reverse Recovery Time
10ns
RoHS Compliant
Yes
Series
Automotive, AEC-Q101
Compliance
RoHS
Compliant
Datasheet
Vishay SL03-GS18 Datasheet
Download the complete datasheet for Vishay SL03-GS18 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

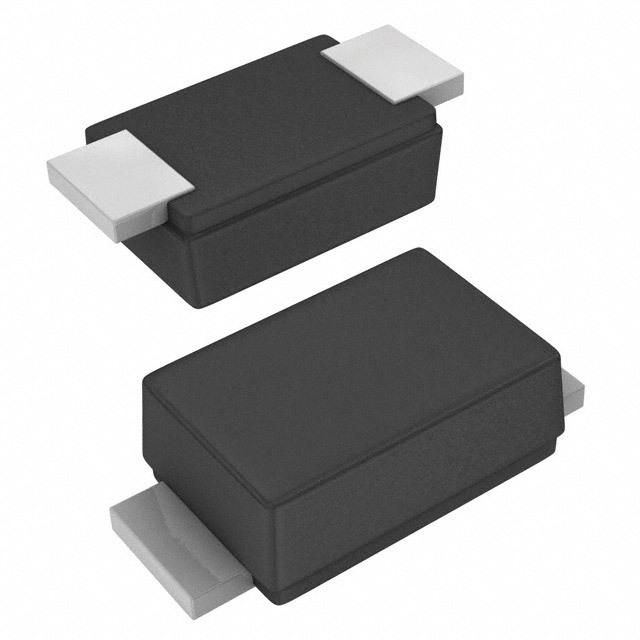

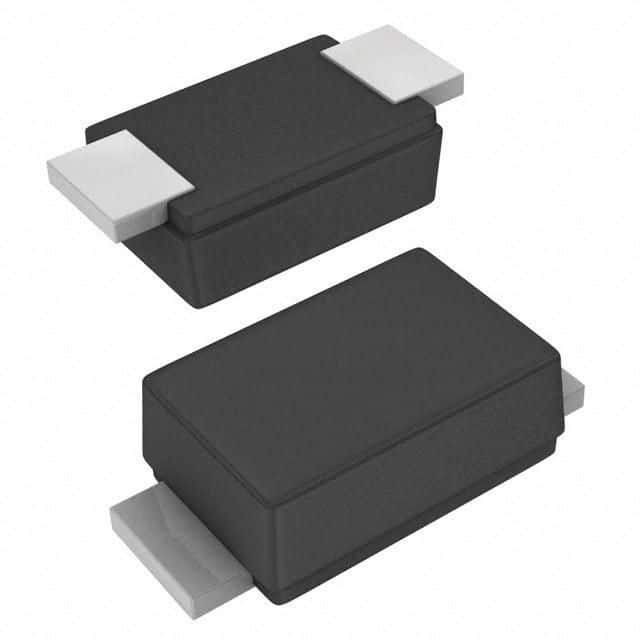

Product Images
