Rectifier diode with 1.5A average rectified current and 30V maximum repetitive reverse voltage. Features a 1.5A forward current, 50A maximum forward surge current, and a maximum reverse leakage current of 200uA. This surface mount component is housed in a DO-214AC (SMA) plastic package, measuring 4.6mm in length, 2.9mm in width, and 0.082 inches in height. Operates across a temperature range of -55°C to 125°C and is RoHS compliant.
PackageDO-214AC
Current Rating1.5A
MountingSurface Mount
PolarityStandard
Quick Jump:
Technical Specifications
Vishay SL13-E3/61T technical specifications.
General
Average Rectified Current
1.5A
Package/Case
DO-214AC
Current Rating
1.5A
Forward Current
1.5A
Height
0.082inch
Lead Free
Lead Free
Length
4.6mm
Max Forward Surge Current (Ifsm)
50A
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
30V
Max Reverse Current
200uA
Max Reverse Leakage Current
200uA
Max Reverse Voltage (DC)
30V
Max Surge Current
50A
Mount
Surface Mount
Output Current
1.5A
Package Quantity
1
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
50A
Polarity
Standard
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
DC Rated Voltage
30V
Width
2.9mm
Compliance
RoHS
Compliant
Datasheet
Vishay SL13-E3/61T Datasheet
Download the complete datasheet for Vishay SL13-E3/61T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

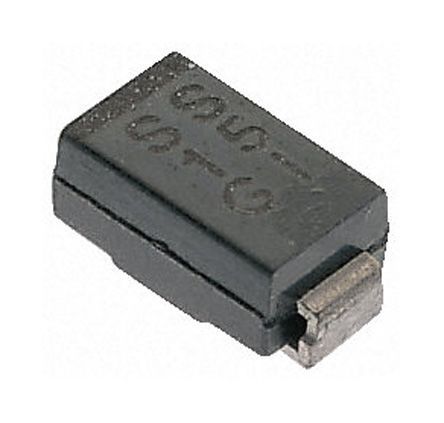

Product Images
