Surface mount rectifier diode with 4A average rectified current and 40V repetitive reverse voltage. Features 8A forward current, 150A peak non-repetitive surge current, and a maximum reverse leakage of 500µA. Operates from -55°C to 125°C in a DO-214AB package. RoHS compliant and lead-free.
PackageDO-214AB
Current Rating4A
MountingSurface Mount
PolarityStandard
Quick Jump:
Technical Specifications
Vishay SL44-E3/57T technical specifications.
General
| Average Rectified Current | 4A |
| Package/Case | DO-214AB |
| Current Rating | 4A |
| Forward Current | 8A |
| Height | 0.095inch |
| Lead Free | Lead Free |
| Length | 7.11mm |
| Max Forward Surge Current (Ifsm) | 150A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Repetitive Reverse Voltage (Vrrm) | 40V |
| Max Reverse Current | 500uA |
| Max Reverse Leakage Current | 500uA |
| Max Reverse Voltage (DC) | 40V |
| Max Surge Current | 150A |
| Mount | Surface Mount |
| Output Current | 4A |
| Package Quantity | 850 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 150A |
| Polarity | Standard |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| DC Rated Voltage | 40V |
| Width | 6.22mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay SL44-E3/57T Datasheet
Download the complete datasheet for Vishay SL44-E3/57T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

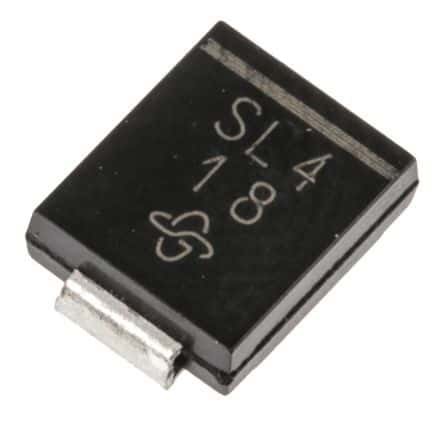

Product Images
