SMAJ24CA-E3/61

Datasheet

Vishay

SMAJ24CA-E3/61

Name: SMAJ24CA-E3/61 Vishay
Brand: Vishay
SKU: SMAJ24CA-E3/61
Price: 0.26 USD
Availability: InStock

TVS Diode, 400W, 24V, Bidirectional, SMA, 10.3A

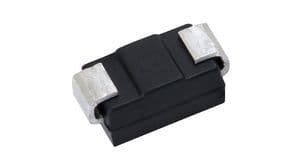

Bidirectional Transient Voltage Suppressor (TVS) diode in an SMA package, offering 400W peak pulse power dissipation. Features a 24V reverse standoff voltage, with a minimum breakdown voltage of 26.7V and a maximum of 29.5V. Clamping voltage is 38.9V, with a low leakage current of 1µA. Designed for transient voltage suppression, this silicon TVS diode operates across a temperature range of -55°C to 150°C and is RoHS compliant.

PackageSMA

PolarityBidirectional

Power400W

Quick Jump:

Pricing & Availability

Distributor	Stock	Min Qty	1+	5+	10+	20+	Package Type	Action
TME	1,535 In Stock	1	0.26	0.214	0.189	0.166	pcs	View
Quest	281 In Stock	62	-	-	-	-	-	View

Chat with Datasheet

Technical Specifications

Vishay SMAJ24CA-E3/61 technical specifications.

General

Package/Case	SMA
Clamping Voltage	38.9V
Clamping Voltage-Max	38.9V
Diode Type	ZENER
Direction	Bidirectional
Height	0.09inch
Lead Free	Lead Free
Leakage Current	1uA
Length	0.177inch
Max Breakdown Voltage	29.5V
Min Breakdown Voltage	26.7V
Max Forward Surge Current (Ifsm)	40A
Max Operating Temperature	150°C
Min Operating Temperature	-55°C
Max Power Dissipation	400W
Max Reverse Leakage Current	1uA
Max Surge Current	10.3A
Number of Bidirectional Channels	1
Number of Channels	1
Number of Elements	1
Operating Supply Voltage	24V
Package Quantity	1800
Packaging	Tape and Reel
Peak Pulse Current	10.3A
Peak Pulse Power	400W
Polarity	Bidirectional
Power Dissipation	400W
Power Line Protection	No
Radiation Hardening	No
Reach SVHC Compliant	Unknown
Reverse Breakdown Voltage	26.7V
Reverse Standoff Voltage	24V
RoHS Compliant	Yes
Series	TransZorb®
Termination	SMD/SMT
DC Rated Voltage	24V
Weight	0.064g
Width	0.11inch
