Unidirectional TVS Diode, 400W Peak Pulse Power, 5V Reverse Standoff Voltage. Features 6.4V minimum and 7.07V maximum breakdown voltage, with a 9.2V clamping voltage. Operates across a -55°C to 150°C temperature range, offering 40A maximum forward surge current and 43.5A peak pulse current. Housed in a compact SMA package (4.5mm L x 2.79mm W x 2.09mm H) with 800uA maximum reverse leakage current.
PackageSMA
PolarityUnidirectional
Quick Jump:
Technical Specifications
Vishay SMAJ5.0A-E3/5A technical specifications.
General
| Package/Case | SMA |
| Clamping Voltage | 9.2V |
| Diode Type | ZENER |
| Direction | Unidirectional |
| Height | 2.09mm |
| Leakage Current | 800uA |
| Length | 4.5mm |
| Max Breakdown Voltage | 7.07V |
| Min Breakdown Voltage | 6.4V |
| Max Forward Surge Current (Ifsm) | 40A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 400W |
| Max Reverse Leakage Current | 800uA |
| Max Surge Current | 43.5A |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 5V |
| Package Quantity | 7500 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 43.5A |
| Peak Pulse Power | 400W |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Reach SVHC Compliant | Unknown |
| Reverse Breakdown Voltage | 6.4V |
| Reverse Standoff Voltage | 5V |
| Series | TransZorb® |
| Width | 2.79mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay SMAJ5.0A-E3/5A Datasheet
Download the complete datasheet for Vishay SMAJ5.0A-E3/5A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

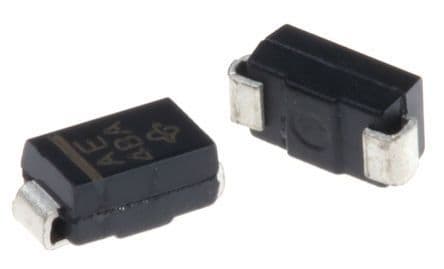

Product Images
